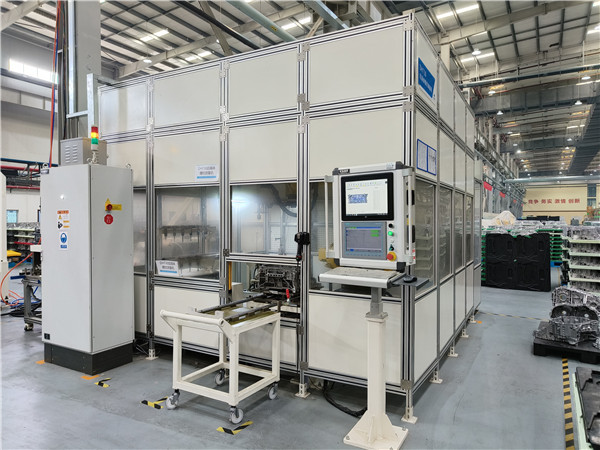

VGAGE has made a breakthrough in the field of intelligent detection, filling the gap in domestic thread detection. ATS-100 is an advanced flexible thread automatic measuring machine that can measure various sizes of threaded holes and is suitable for various types of parts such as shells, boxes, etc. It can measure from the smallest M3 to the largest size of M40, and can automatically replace different measuring heads. Using this device to detect a single threaded hole only takes 8 to 12 seconds, which is very fast and efficient. The device also has two functions of torque monitoring and depth measurement, and has anti-collision design to protect the safety of robots and core control modules. The torque force for tightening threads can be freely set within the range of 0.1Nm to 12NM, and the torque sensor will automatically retract after reaching the set torque force.

ATS-100 can connect up to 40 different sizes of thread measuring heads, and also has the function of effectively detecting the depth of blind holes, with an accuracy of up to 0.1mm. The online use of this automatic measuring machine can replace the low efficiency of manual detection and provide stable data acquisition and quality monitoring capabilities, which is a new trend in intelligent detection.
